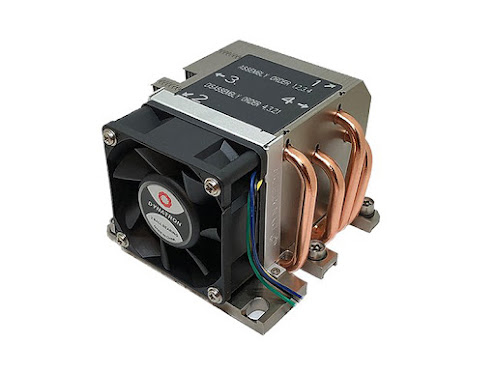

DYNATRON Air Cooler - B13





























Recommend for Intel® Xeon ® Platinum / Gold / Silver/ Bronze Family Processor (formerly Cascade Lake, Skylake), Socket FCLGA 3647 Square ILM, Active Cooler for 2U Server and up, 60x60x25 mm PWM Fan,   Aluminum heatsink with heat pipe embedded, Support CPU power up to 205 Watts heat dissipation.



Additional Information

CPU Support

Intel

CPU Socket

FCLGA3647

Solution

2U Server and Up

Dimensions

90.0 x 90.0 x 66.0 mm

Weight

430 g

Material

Aluminum Heatsink with Heatpipe Embedded

Fan Dimension

60 x 60 x 25 mm

Speed

At Duty Cycle 20%:   1400 ± 200 RPM
At Duty Cycle 50%: 3400 ± 10% RPM
At Duty Cycle 100%: 7000 ± 10% RPM

Rated Voltage

12V

Bearing

2 Ball Bearing

Power

At Duty Cycle 20%: 0.90 W

At Duty Cycle 50%: 2.04 W

At Duty Cycle 100%: 5.40 W

Air Flow

At Duty Cycle 20%: 8.12 CFM

At Duty Cycle 50%: 20.31 CFM

At Duty Cycle 100%: 40.60 CFM

Noise Level

At Duty Cycle 20%: 16 dBA
At Duty Cycle 50%: 35 dBA
At Duty Cycle 100%: 50 dBA

Air Pressure

At Duty Cycle 20%: 0.58 mm-H2O
At Duty Cycle 50%: 3.65 mm-H2O
At Duty Cycle 100%: 14.58 mm-H2O

Lead Wire Pin Out

Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

Thermal Grease

Shin-Etsu 7762 Pre-printed

*All product specifications and product imagesare subject to change without notice



Downloads

CPU Cooler Specification & RoHS Certificate
